Wolf-App
Ready Automation SoftwareDrop-in automation software for the Wolf Gateway. Speaks MQTT, Modbus RTU/TCP, and REST API. Receives commands from your platform, executes them on connected equipment, sends measurements back.
Why Wolf-App
Connects Your System to Real Equipment
Wolf-App speaks MQTT, Modbus RTU, Modbus TCP, and REST API. It receives commands from your platform, executes them on connected equipment, and sends status and measurements back. Your cloud talks to Wolf-App; Wolf-App talks to your inverters, relays, sensors, and meters.
Runs Logic Locally
A Lua rule engine runs on the device itself. Switching logic, alarms, and data processing happen locally — the controller stays operational even when the cloud is offline. Define rules once; they execute on the edge with no round-trip latency.
Configure From a Browser, Everywhere
The whole device has a built-in admin UI. Configure every protocol, rule, and integration from any browser on any OS — laptop, desktop, phone, tablet, even a car browser. With the built-in WireGuard VPN, the device is reachable wherever your network reaches — office, customer site, service truck. No client to install, no OS lock-in, no vendor cloud relay.
Configure Once, Deploy Many
Export a device configuration as a backup file. Restore it to any new unit and it's ready to go. No cloud dependency for configuration. No per-device license fees. Scale your deployment from one unit to thousands without added complexity.
Whitelabel Ready
Custom firmware builds with your company name and logo. Deploy Wolf-App under your brand without FoxIoT visible to your customers. Available for OEM partners and system integrators.
Features
Protocols
| Feature | Detail |
|---|---|
| MQTT | v3.1.1 and v5, TLS, fleet model mapping |
| Modbus RTU | master, 300–115200 bps |
| Modbus TCP | client, server, and RTU↔TCP gateway |
| DALI-2 | gear, input devices, scenes/groups, DT1 emergency tests |
| REST / HTTP | JSON API with token authentication |
| Wiegand | 26-bit card-reader inputs |
Networking
| Feature | Detail |
|---|---|
| Ethernet | DHCP or static IP, hostname, DNS config from UI |
| 4G/LTE modem | Mini PCIe modem control, signal diagnostics |
| Routing | static routes and WAN priority (Ethernet vs cellular) |
| WireGuard VPN | built-in client with in-UI key management |
| Firewall | per-rule allow/deny configuration |
| Diagnostics | ping, interface status, modem signal |
Security
| Feature | Detail |
|---|---|
| TOTP / 2FA | time-based one-time codes per user |
| SSH key management | UI-managed, per-user |
| Audit log | every configuration change timestamped |
| Signed firmware | signature verified before flash, integrity hashes checked at boot |
| A/B rollback | auto-fallback if an update fails |
Runtime
| Feature | Detail |
|---|---|
| Device model | shared live state of I/O, config, and runtime |
| Reactive event bus | drivers, rules, and integrations react to changes — no polling |
| Local-first execution | rules run on-device, no cloud round-trip |
| Sub-second response | local I/O reacts in milliseconds |
Automation
| Feature | Detail |
|---|---|
| Rule engine | Lua scripts, if/then conditions, and evalexpr expressions |
| HTTP webhooks | call external systems on local events |
| Pulse emitter | fixed-interval triggers for periodic rules |
Management
| Feature | Detail |
|---|---|
| Browser admin UI | configure from a web browser, no client install |
| Config export/import | JSON snapshot, redeploy to many units |
| Modbus test tool | built-in commissioning helper |
| Whitelabel firmware | custom branding for OEM partners |
Setup & First Boot
Step-by-step guide for unboxing your Wolf Gateway, finding its IP, changing the default password, enabling two-factor authentication, and hardening with WireGuard VPN + firewall.
Open the Wolf-App setup guide →
Typical Applications
PV & BESS Monitoring
Read inverter and battery telemetry over Modbus RTU. Push real-time metrics to your cloud over MQTT. Trigger safety relays locally when thresholds are crossed — no cloud round-trip needed.
HVAC & Building Automation
Read sensors, drive relays, run local schedules and PID loops. Receive setpoints from your platform; report status. Continues operating during cloud outages.
Virtual Power Plant (VPP)
Receive commands and setpoints from your aggregator over MQTT or Modbus TCP. Command PV inverters and batteries over Modbus (TCP or RTU), and switch grid equipment via relays. Feed back grid-meter data with sub-second latency on the local bus.
Smart Lighting (DALI)

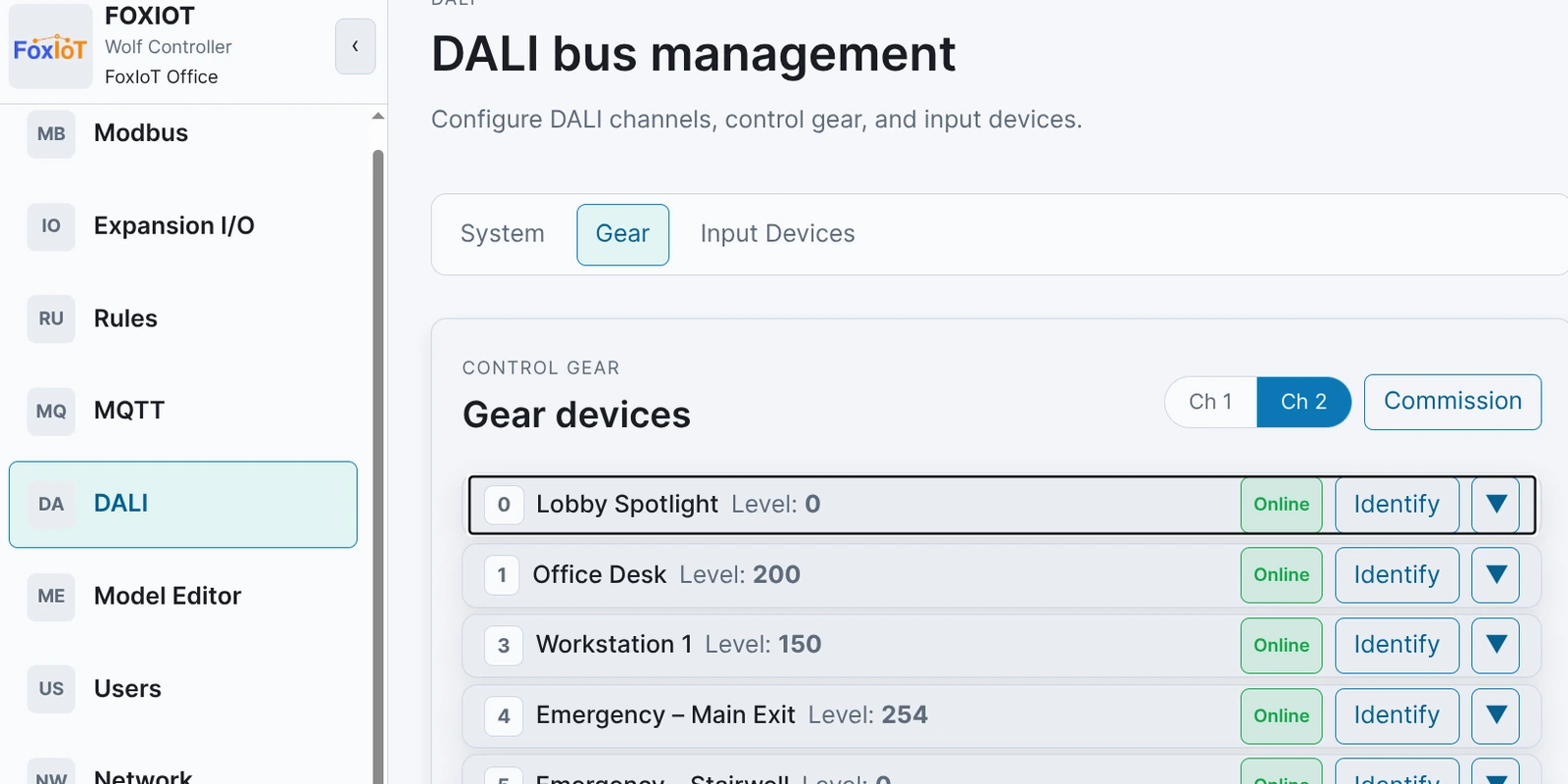

Commission DALI-2 luminaires, organise scenes and groups, and run DT1 emergency-lighting tests from the Wolf-App UI. Bridge DALI to Modbus TCP, REST, or MQTT on a Wolf-2DALI gateway — local Lua rules handle scheduling and overrides.
Compatible Hardware
Wolf-App ships pre-installed on every Wolf Gateway. The same firmware image runs on all expansion-card variants — Wolf-App detects which card is present at boot and configures the I/O mapping automatically.
Wolf-3Oi3Ro
3× Relay 3 Opto-Iso DI RS-485
3 Omron relays, 3 opto-isolated digital inputs, RS-485 Modbus RTU. For switching and signal routing.
Wolf-8ADio1Ro
8 Multifunction I/O Relay RS-485
8 multifunction I/O ports + 1 relay. For sensors, HVAC, mixed-signal automation.
Wolf-2RS485
2× RS-485 Independent baud
2 independent RS-485 ports. For multi-device Modbus and protocol bridging.
Wolf-2DALI
2× DALI-2 buses Integrated bus power RS-485
Two DALI-2 lighting buses with on-board bus power. Commissioning, scenes, groups, and DT1 emergency-lighting tests via the Wolf-App UI.
Compliance & Security
Product security information is published per the EU Cyber Resilience Act (Regulation 2024/2847).
| Document | Audience | Format |
|---|---|---|
| Product Security Information (CRA-UI-001) | Standard Wolf Gateway firmware | PDF ↓ |
| Firmware Releases | Signed Wolf-OS / Wolf-App bundles | Index → |
Vulnerabilities → security@foxiot.eu. See the coordinated disclosure policy.
Related Products
Wolf-OS
Linux Platform Custom Firmware
Prefer to write your own automation? Wolf-OS is the bare Linux platform — same hardware, your code on top.
Wolf Gateway Family
Hardware Modular
Pick the expansion card that matches your project. Wolf-App runs on all of them.
Ready to Deploy Wolf-App?
Tell us about your project — we'll provide pricing, integration details, and ship a test controller for in-project testing if it's a fit.
