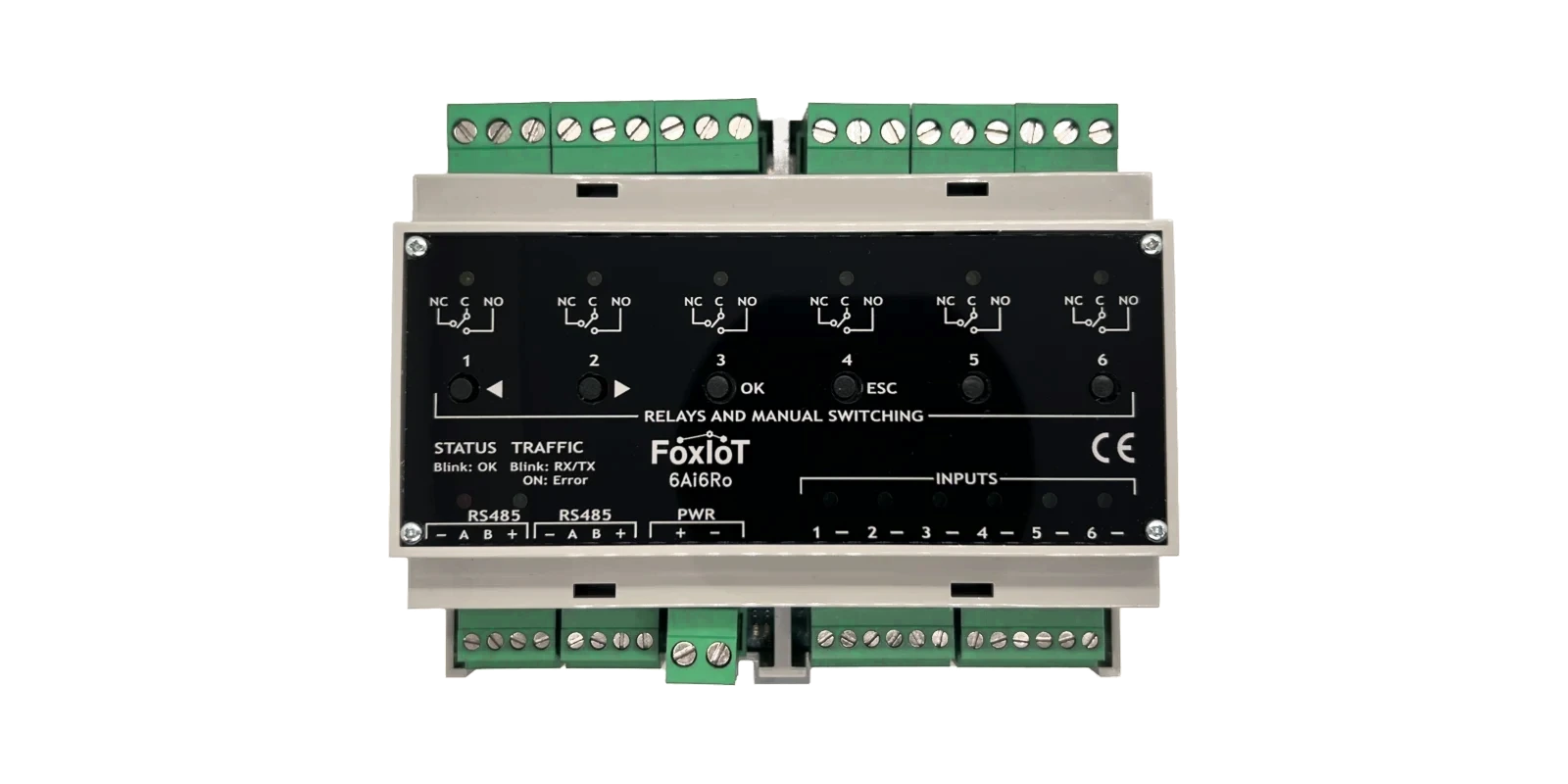

6Ai6Ro
Sense & Switch6 multifunction inputs, 6 relays — the universal automation controller with 0-10V, 4-20mA, and NTC support.
Why 6Ai6Ro
Flexible Inputs on Every Port
Every input port independently configurable as digital, 0-10V analog, 4-20mA current loop, or NTC temperature sensor — no rewiring required when requirements change.
Powerful Direct Switching
6 high-quality Omron relays rated 16A at 230V — directly control heating elements, contactors, pumps, and other heavy loads.
Standalone Operation
Built-in rule engine runs automation logic locally. No Modbus master required — continues operating even if the gateway goes offline.
Typical Connections
Key Specifications
| Parameter | Value |
|---|---|
| Inputs | 6 × multifunction (16-bit, ±0.1%) |
| Relay Outputs | 6 × Omron (16A @ 230V) |
| RS-485 | 1 port, Modbus RTU, 300–115200 bps |
| Power Supply | 11-30V DC |
| Operating Temperature | −40 to +55 °C |
Full Specifications
I/O
| Parameter | Value |
|---|---|
| Inputs | 6 × multifunction: Digital / 0-10V / 4-20mA / NTC (16-bit, ±0.1%) |
| Relay Outputs | 6 × Omron (16A @ 230V) |
| Front Panel Buttons | 6 buttons (disable possible) |
| Status Indicators | Input, Relay, RS-485, System LEDs |
| Automation Rules | Up to 8 |
Communication
| Parameter | Value |
|---|---|
| RS-485 | 1 port, Modbus RTU, 300–115200 bps |
| Protocol | Modbus RTU slave |
Mechanical
| Parameter | Value |
|---|---|
| Mounting | DIN-rail |
| Operating Temperature | −40 to +55 °C |
Power
| Parameter | Value |
|---|---|
| Input Range | 11-30V DC |
| Reverse Voltage Protection | Yes |
Processor
| Parameter | Value |
|---|---|
| CPU | ARM Cortex-M33 @ 76.8 MHz |
Use Cases
HVAC Room Control
Read NTC temperature sensors and room state via multifunction inputs. Switch heating, cooling, and ventilation relays based on local automation rules — no cloud dependency.
Sensor Monitoring + Relay Automation
Mix digital inputs, 0-10V sensors, and 4-20mA transmitters on the same unit. Trigger relay outputs based on sensor thresholds with the built-in rule engine.
Building Management
Deploy across multiple zones in a building. Each 6Ai6Ro operates standalone, reporting to a Wolf Gateway or central Modbus master via RS-485.
Downloads
| Document | Format | Size |
|---|---|---|
| Product Manual | PDF ↓ | 4.0 MB |
| Flyer | PDF ↓ | 1.5 MB |
| Wiring Instructions | PDF ↓ | 3.7 MB |
| Modbus Register Map | PDF ↓ | 744 KB |
| Modbus Register Map | XLSX ↓ | 236 KB |
| Wolf-App Modbus Template — I/O registers | JSON ↓ | 20 KB |
| Wolf-App Modbus Template — incl. rule registers | JSON ↓ | 87 KB |
Setting the Modbus Address with the Front-Panel Buttons
Every controller leaves the factory on address 1, so a bus with several new units has nothing to tell them apart. The four front-panel buttons set the Modbus address, baud rate and serial format on site — no master, no laptop, no software.
Two details worth knowing before you start: the value being edited is shown in binary on the six yellow relay LEDs — weights 1 · 2 · 4 · 8 · 16 · 32, add the lit ones — and the buttons reach addresses 1 to 62. Higher addresses are set over Modbus. The full button and LED reference is in the Product Manual above.
The same procedure applies to the 6Oi6Ro and the 6ADi4Ro2AVo2AIo.
