Wolf-8ADio1Ro

8 Configurable I/O

8 multifunction I/O ports, 1 Omron relay, RS-485 Modbus RTU on a Linux platform — for sensor-heavy automation, HVAC, access control, and PV monitoring.

8 multifunction ports 1× Omron relay (5 A @ 30 V AC / 30 V DC) Modbus RTU · M-Bus · wM-Bus 10/100 Ethernet · 4G/LTE optional DIN-rail · −40 to +55 °C
Get a Test Controller Full Specifications
Wolf-8ADio1Ro — 8 configurable i/o, front view with terminal detail

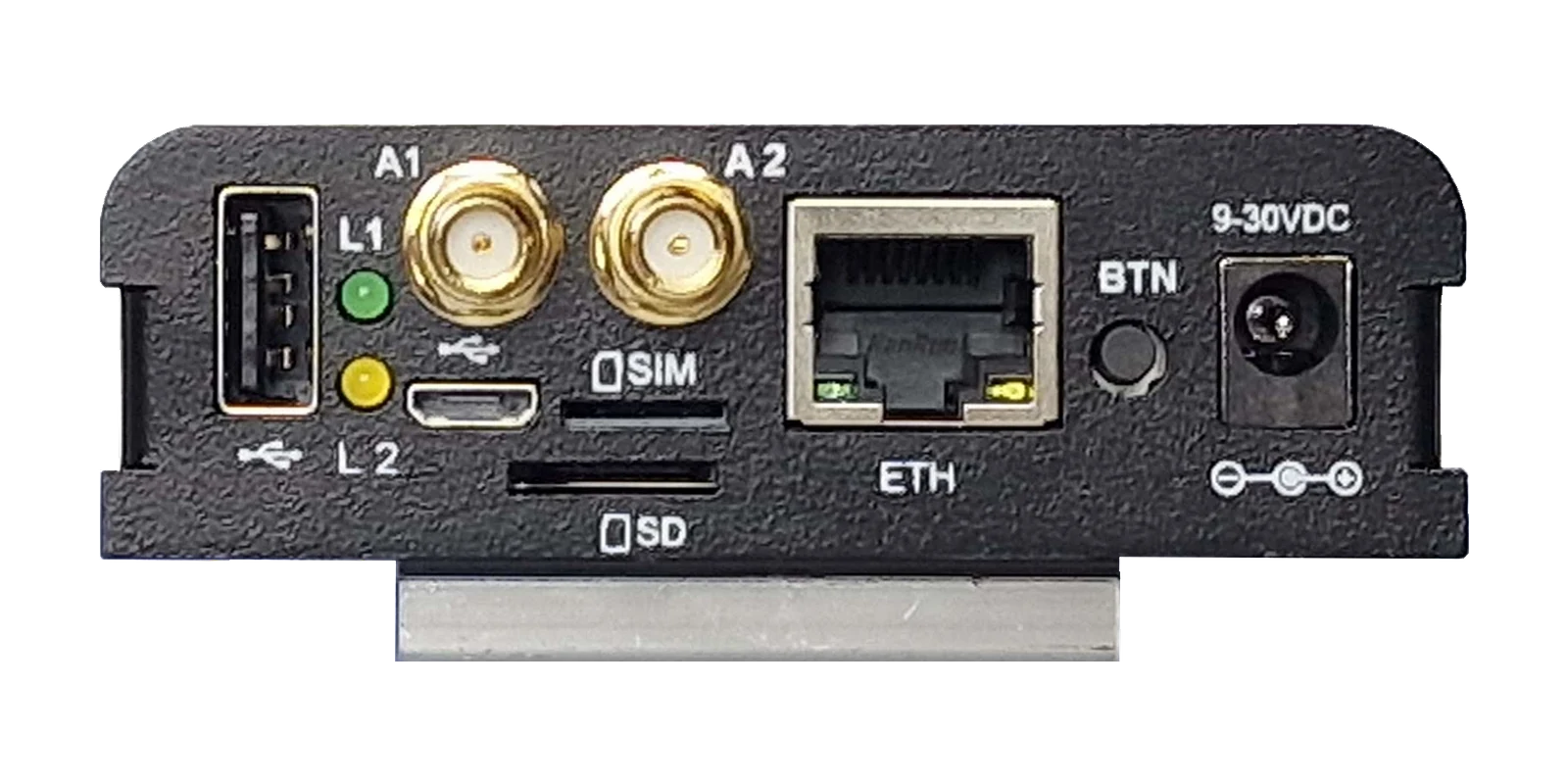

Wolf-8ADio1Ro front panel — USB host, 2 SMA antenna connectors, 10/100 Ethernet port and DC power input

Why Wolf-8ADio1Ro

Versatile Mixed-Signal I/O

8 ports, each independently configurable as digital input (30 V DC), digital output (350 mA), analog input (0–10 V or 4–20 mA), NTC temperature sensor, or Wiegand reader. One expansion card covers almost any sensor or signal type.

Built for Sensor-Heavy Projects

Connect temperature sensors, pressure transmitters, flow meters, and access readers all to one controller. 12-bit ADC with 4–20 mA and 0–10 V support.

Connect to Any Protocol

Talk to field devices over RS-485 Modbus RTU, and forward their data to your cloud or control system via MQTT, REST API, or Modbus TCP — over Ethernet or 4G/LTE. One unit links your field equipment to your software.

Key Specifications

Parameter Value
Multifunction I/O 8 × DI / DO / AI 0–10 V / AI 4–20 mA / NTC / Wiegand
Relay Output 1 × Omron (5 A @ 30 V AC / 30 V DC)
RS-485 1 port, Modbus RTU or M-Bus (external converter), 300–115200 bps
Wireless M-Bus Optional Wolf wireless M-Bus USB stick, 868 MHz (EN 13757-4)
Ethernet 1 × 10/100 Mbps RJ45
Cellular Optional 4G/LTE mini-PCIe module + nano SIM
Power Supply 11.5–30 V DC
Operating Temperature −40 to +55 °C

Front Panel

Wolf-8ADio1Ro front panel with every port labelled: USB connection port, CPU activity LED, network/VPN status LED, service port, mobile main and AUX antenna connectors, nano SIM slot, SD card slot, Ethernet port, programmable button and DC power input

Expansion Card

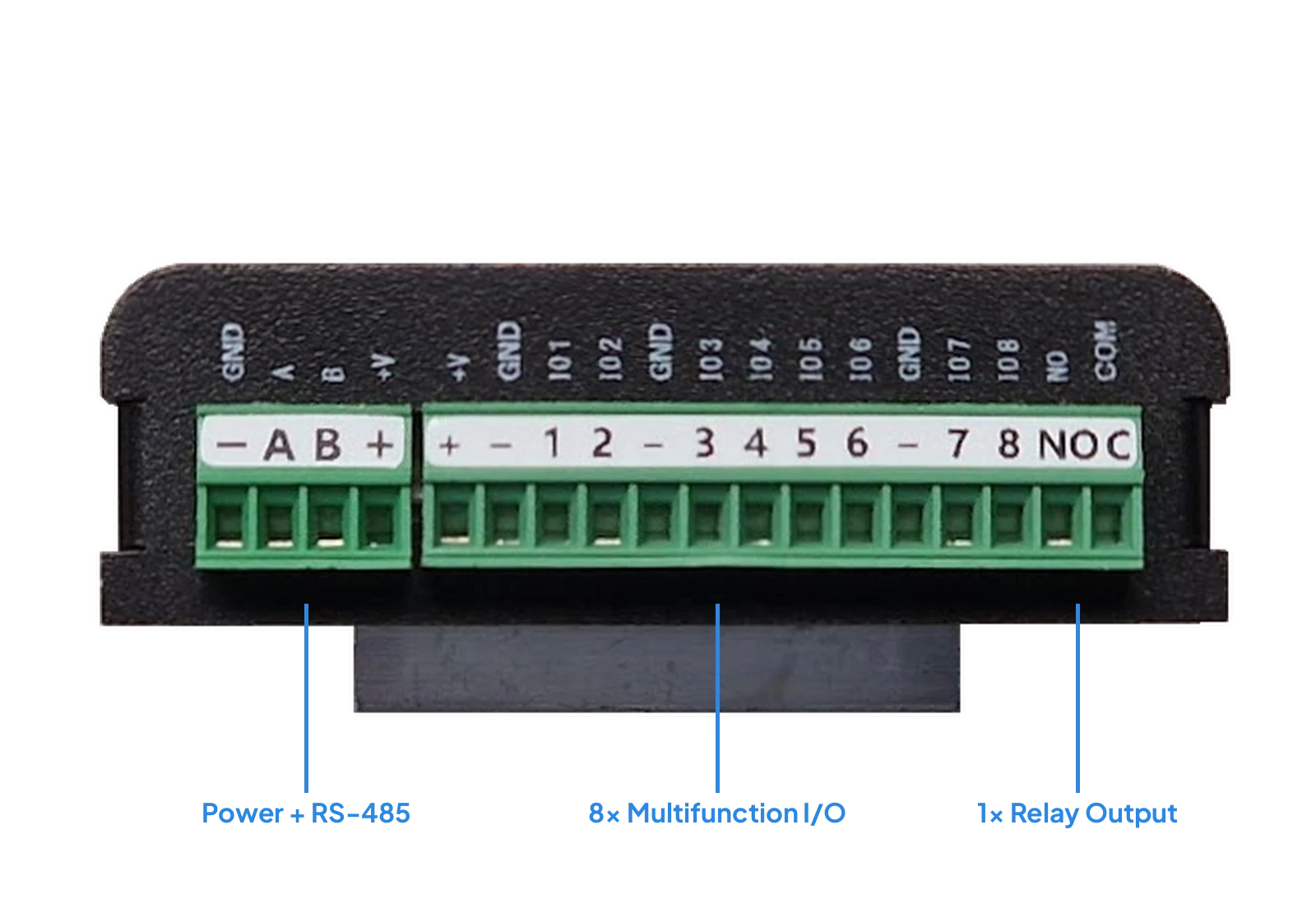

Wolf-8ADio1Ro expansion card connectors, each terminal block labelled

Use Cases

HVAC Monitoring & Control

Connect temperature, humidity, and pressure sensors via analog inputs. Control HVAC units via the relay. Receive setpoints via MQTT, run local logic when the cloud is offline.

Access Control

Connect Wiegand card readers via multifunction ports for door access. Trigger the relay output for door-strike control. Log events and report via MQTT or REST API.

PV Park Monitoring

Read irradiance sensors, temperature probes, and current transducers via 4–20 mA and 0–10 V inputs. Monitor panel health and use the relay for safety disconnect.

Full Specifications

Expansion Card

Parameter Value
Multifunction Ports 8 × configurable: DI (max 30 V DC), DO (max 350 mA), AI 0–10 V, AI 4–20 mA, NTC, Wiegand
ADC Resolution 12-bit
Relay Output 1 × Omron (5 A @ 30 V AC / 30 V DC, >100,000 operations)
RS-485 SN65HVD1781DR transceiver, ±15 kV HBM ESD, ±30 V bus protection (on-board TVS), 120 Ω termination, 300–115200 bps
Auto Detection Onboard EEPROM for card-type identification

Motherboard

Parameter Value
CPU NUC980 ARM926EJ-S @ 300 MHz
Memory 128 MB DDR II
Storage 128 MB NAND Flash
Ethernet 10/100 Mbps RJ45
USB Micro USB 2.0 (FW upgrade), USB 2.0 (1 A)
SD Card Micro-SD slot with detection
SIM Nano SIM (for LTE modem)
Mini PCIe USB 2.0 — for 4G/LTE/NB-IoT/WiFi modules
Crypto AES-256, RSA-2048, SHA-512, ECC-256, HMAC, RNG
RTC Real-time clock (battery backup optional)
Sensors Onboard PCB temperature, input voltage monitoring
Status LEDs 2× programmable (heartbeat + user by default)

Mechanical

Parameter Value
Mounting DIN-rail
Dimensions 126 × 80 × 35 mm
Weight ~350 g
Operating Temperature −40 to +55 °C
Storage Temperature −40 to +75 °C
Humidity 5–90 % (non-condensing)

Power

Parameter Value
Input Range 11.5–30 V DC
DC Jack 2.1 / 5.5 mm
Average Power 0.6 W @ 12 V DC
Reverse Voltage Protection Yes

Compliance & Security

Product security information is published per the EU Cyber Resilience Act (Regulation 2024/2847).

Document Audience Format
Product Security Information (CRA-UI-001) Standard Wolf Gateway firmware PDF ↓
Firmware Releases Signed Wolf-App firmware images Index →
Older versions Superseded revisions of the documents above, kept for ten years Archive →

Vulnerabilities → security@foxiot.eu. See the coordinated disclosure policy.

Downloads

Document Format Size
Product Manual PDF ↓ 1.2 MB
Flyer PDF ↓ 1.4 MB
